220/20 kV, 16 MVA Transformer Substation at Gardez, Paktia Province, Afghanistan

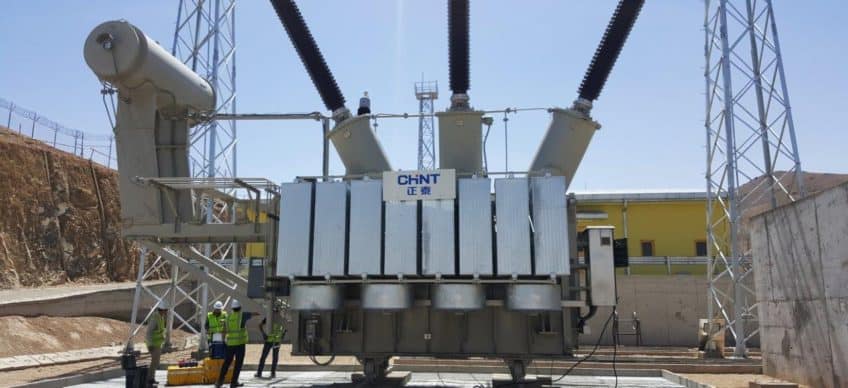

Novin Simia team successfully installed, vacuum, vacuum filling and also tested two 16 MVA Power Transformer such as: Insulation resistance test, Turn ratio test on all tap, Dynamic Resistance OLTC Test, Static Resistance Test, Winding Resistance Test, Continuity Test and Power Transformer Oil Test for this substation project.

• 2×16 MVA, 50 Hz, Power Transformers
• Voltage Rate 220 kV to 20 kV
• Double Main Bus & Transfer Bus system
• 1 Incoming 220 kV & 4 Outgoing 20 kV Feeders

Client:
Da Afghanistan Breshna Sherkat (DABS)

Date:
25 Sep. 2016 to 2 Feb. 2017

Location:
Gardez, Paktia Province, Afghanistan
